Part Number	Off state Voltage V_DRM(V)	Off state Voltage I_DRM25℃(μA) Max	Breakdown Voltage V_BR(V) Min	Breakdown Voltage I_R (mA)	Clamp Voltage V_C (V) Max	Clamp Voltage I_PP (A)	Clamp Voltage V_C (V) Max	Clamp Voltage I_PP (A)	Capacitance CO(pF) 0V@1MHZ Max	Surge Waveform (μs)	P_PP (W)	Package	搜索

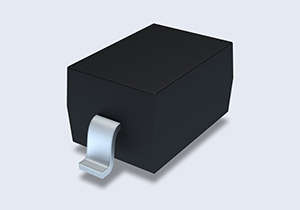

BV03C-H	3.3	1	3.8	1	7	1	15	10	1.5	8/20	350	SOD-323
BV03CW	3	0.5	3.5	1	5.8	1	15	10	1.5	8/20	150	SOD323
BV-D305ZB	5	10	6	1	9.8	1	18	17	400	8/20	306	SOD323

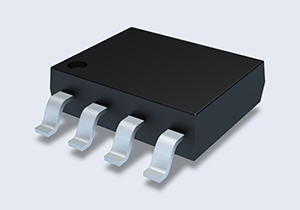

BV-3304P8	3.3	0.1	3.5	1	5.8	1	18	25	2	8/20	450	SOP8

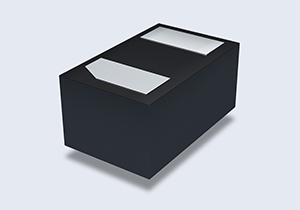

BV-FA05ZC	5	1	6	1	11	1	15	4.5	15	8/20	75	DFN1006-2
BV-FA05UC	5	1	6	1	12	1	14	2	0.5	8/20	25	DFN1006-2
BV05C	5	5	6	1	9.8	1	18.3	8	15	8/20	150	SOD323
BV-ULC0524P	5	1	6	1	15	1	25	4	0.6	8/20	100	DFN2510-10L
BV-ULC0524PA	5	1	6	1	15	1	25	4	0.6	8/20	10	DFN2510-10L

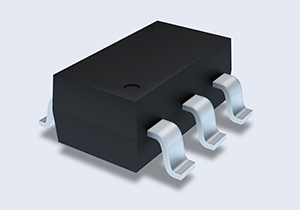

BV-SRV05-4	5	0.5	6	1	/	/	15	5	SOT23-6L	8/20	75	SOT23-6
BV-D505ZC	5	1	5.6	1	11.6	5	19	8	15	8/20	150	SOD523
BV-SD05	5	5	6	1	9.8	1	15	24	320	8/20	350	SOD323

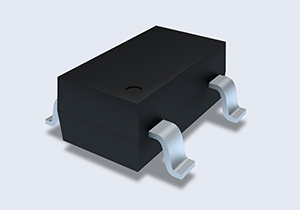

BV-SR05	5	1	6	1	15	1	25	5	1.2	8/20	125	SOT143
BV_SM712	7/12	10/2	7.5/13.3	1	/	/	17/12	22/26	55	8/20	450	SOT23
BV08C	8	2	8.5	1	13.4	1	18.5	8	1.5	8/20	150	SOD323
BV12C	12	1	13.3	1	19	1	28.6	6	1.5	8/20	150	SOD-323
BV15C	15	1	16.7	1	24	1	31.8	5	1.5	8/20	150	SOD-323
BV24C	24	1	26.7	1	43	1	56	3	1.5	8/20	150	SOD323
BV-D32.5UCA	2.5	0.5	2.8	1	5	1	10	10	5	8/20	100	SOD323
BV-D303UC	3	0.5	3.5	1	5.15	1	13.9	15	1	8/20	350	SOD323
BV-D308UCE	8	1	8.3	1	12.5	1	30	13.5	2	8/20	405	SOD323
BV-D312UCE	12	1	13.5	1	18.3	1	34	13.5	2	8/20	459	SOD323
BV-D315UCE	15	1	17.3	1	21.7	1	40	10	2	8/20	400	SOD323
BV-FG03U4CA	3	0.1	3.5	1	7	1	17	12	1.2	8/20	200	DNF2010-8L
BV-D324UCE	24	1	27.3	1	34	1	52	6.5	2	8/20	338	SOD323
BV-FK05U4CA	5	0.5	6	1	/	/	15	3	0.6	8/20	45	DFN2510-10L

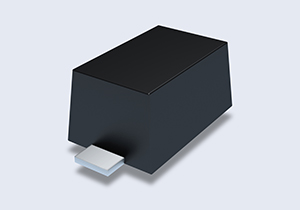

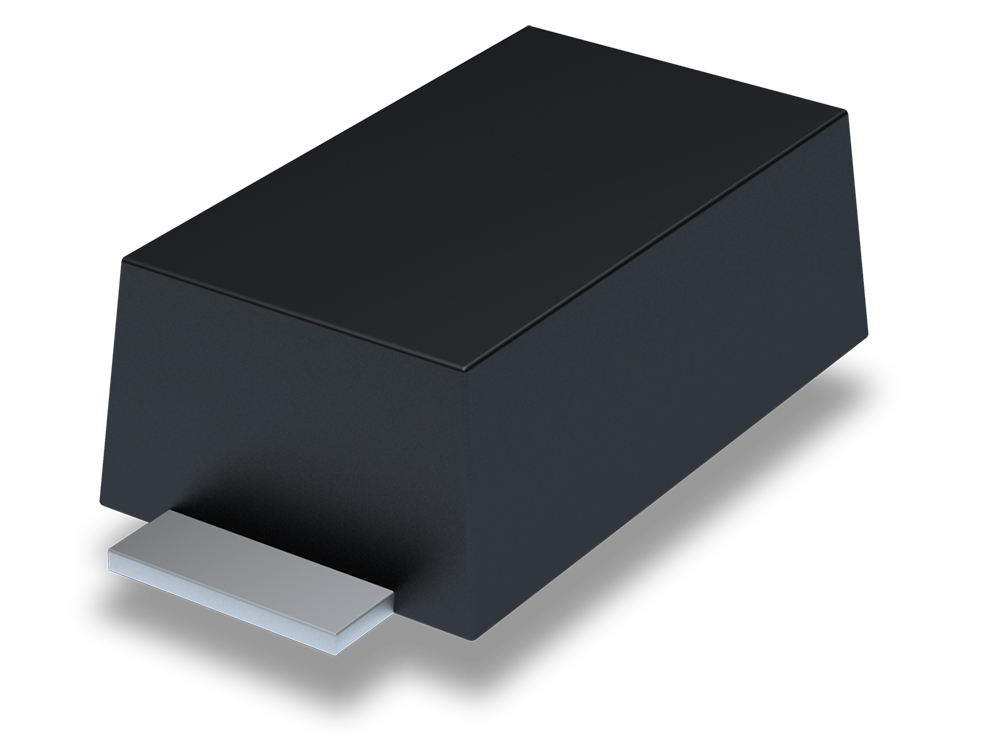

BV-D112ZB	12	1	13.3	1	23	100	26	170	1500	8/20	4420	SOD123F
BV-D112ZCB	12	1	13.3	1	/	/	24	170	1000	8/20	4000	SOD123F

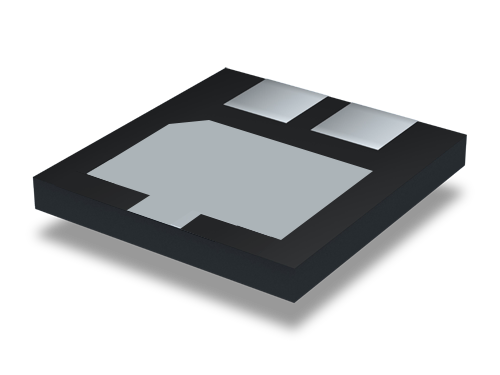

BV-FM12ZA	12	1	13	1	23	100	27	150	1500	8/20	4050	DFN2020
BV-FM4.5ZCB	4.5	1	4.8	1	/	/	20	275	1000	8/20	6000	DFN2020
BV-FM20ZA	20	1	21	1	/	/	37	80	1500	8/20	2960	DFN2020
BV-FM24ZD	24	1	25	1	46	70	53	90	1500	8/20	1800	DFN2020
BV-FE05ZA	5	1	6	1	9	100	13	150	2000	8/20	1800	DFN1610-2L
BV-FE07ZA	7	1	7.5	1	12	80	13	100	1000	8/20	1300	DFN1610-2L
BV-FE07ZCA	7	1	7.5	1	/	/	13	100	1000	8/20	1300	DFN1610-2L
BV-D305ZH	5	1	6	1	11	100	14	130	2000	8/20	1820	SOD-323
BV-D505ZCA	5	1	5.8	1	9.8	1	15	20	30	8/20	300	SOD523
BV-D505ZCB	5	2	5.2	1	9.8	1	16	3	7	8/20	50	SOD523
BV-D512ZA	12	0.1	14.1	1	23	3	29	6	100	8/20	174	SOD523
BV-FA2.5UCB	2.5	0.5	2.8	1	5	1	10	10	5	8/20	100	DFN1006-2
BV-FA05UCA	5	0.1	6	1	16	2	24	4	0.4	8/20	96	DFN1006-2
BV-FA05UCB	5	0.05	6	1	8.3	1	10	4	0.5	8/20	40	DFN1006-2
BV-FA05UCD	5	0.05	6	1	9	1	11	7	1	8/20	77	DFN1006-2
BV-FA03ZCD	3.3	1	4	1	7.6	1	15	6	15	8/20	70	DFN1006-2
BV-FA05ZCD	5	0.5	5.6	1	10	1	12	5	18	8/20	60	DFN1006-2
BV-FA03ZCB	3.3	1	3.5	1	6	1	10	7	12	8/20	70	DFN1006-2
BV-FA05UA	5	1	5.4	1	10	1	20	4	0.8	8/20	80	DFN1006-2
BV-E505U2A	5	1	6	1	12	1	25	4	0.8	8/20	100	SOT523
BV-E505U2B	5	0.1	6	1	12	1	15	4	0.8	8/20	60	SOT523
BV-D34.5ZCA	4.5	1	4.8	1	13	100	16	160	1500	8/20	2200	SOD-323
BV-D308ZCA	8	1	8.5	1	13.4	1	20	18	100	8/20	360	SOD323
BV-D312ZCA	12	1	13.3	1	20	1	30	11	50	8/20	330	SOD323
BV-D315ZCA	15	1	16.7	1	25	1	36	9	45	8/20	324	SOD323
BV-D318ZCA	18	1	19.5	1	30	1	40	8	42	8/20	320	SOD323
BV-D324ZCA	24	1	26.7	1	45	1	50	5	40	8/20	250	SOD323
BV-D336ZCA	36	1	40	1	65	1	75	3	25	8/20	225	SOD-323
BV-D303ZB	3.3	40	4	1	8	1	11	18	450	8/20	198	SOD323
BV-D312ZB	12	1	13.1	1	22	1	32	11	130	8/20	352	SOD323
BV-D315ZB	15	1	16.7	1	43	1	52	5.5	80	8/20	380	SOD323
BV-D324ZB	24	1	26.7	1	43	1	52	5.5	80	8/20	286	SOD323
BV-D336ZB	36	1	40	1	60	1	75	3	60	8/20	225	SOD323
BV-T305Z2CA	5	5	6	1	9.8	1	17	24	200	8/20	400	SOT23-3
BV-T308Z2CA	8	1	8.5	1	13.4	1	20	18	100	8/20	360	SOT23-3
BV-T312Z2CA	12	1	13.3	1	20	1	30	11	50	8/20	330	SOT23-3
BV-T315Z2CA	15	1	16.7	1	25	1	36	9	45	8/20	324	SOT23-3
BV-T318Z2CA	18	1	20	1	30	1	40	8	45	8/20	320	SOT23-3
BV-T324Z2CA	24	1	26.7	1	45	1	50	5	40	8/20	250	SOT23-3
BV-T333Z2CA	33	1	34.6	1	58	1	60	4	30	8/20	240	SOT23-3
BV-T336Z2CA	36	1	40	1	65	1	75	3	25	8/20	225	SOT23-3
BV-T303Z2B	3.3	40	4	1	7.5	1	12	20	450	8/20	240	SOT23-3
BV-T305Z2B	5	10	6	1	9.8	1	18	17	400	8/20	306	SOT23-3
BV-T312Z2B	12	1	13.3	1	22	1	32	11	130	8/20	352	SOT23-3
BV-T315Z2B	15	1	16.7	1	24	1	38	10	120	8/20	380	SOT23-3
BV-T324Z2B	24	1	26.7	1	43	1	52	5.5	80	8/20	286	SOT23-3
BV-T336Z2B	36	1	40	1	60	1	75	3	60	8/20	225	SOT23-3
BV-T305U2A	5	0.1	6	1	10	1	15	4	0.4	8/20	60	SOT23-3
BV-P803Z2A	3.3	1	3.5	0.002	/	/	20	100	25	8/20	2000	SOP8
BV-P858Z4A	58	0.5	62	1	/	/	100	24	400	8/20	2700	SOP8
BV-SLVU2.8-4	28	0.1	3.5	1	5.8	1	18	24	3	8/20	450	SOP8
BV-P82.8U4CA	2.8	0.05	2.8	50	5	1	10	10	1.5	8/20	100	SOP8
BV-E305U2A	5	1	6	1	10	1	15	3	0.6	8/20	60	SOT323
BV-F603ZCA	3.3	0.1	3.5	1	6	1	10	9	10	8/20	90	DFN0603-2
BV-F605ZCD	5	0.1	6	1	8	1	12	6	15	8/20	96	DFN0603-2
BV-F605UCF	5	0.5	6	1	15	1	25	4	0.3	8/20	100	DFN0603-2
BV-F607ZCA	7	1	7.2	50	10	1	15	6	10	8/20	90	DFN0603-2
BV-F612ZCB	12	1	13	1	16	1	20	6	5	8/20	120	DFN0603-2
BV-FA03ZCT	3.3	0.1	3.5	1	7	1	10	6	12	8/20	60	DFN1006-2
BV-FA03ZCE	3.3	0.1	3.5	50	6	1	10	9	10	8/20	90	DFN1006-2
BV-FA4.5ZCA	4.5	1	4.6	1	7	1	15	35	65	8/20	600	DFN1006-2
BV-FA05ZCT	5	1.5	5.3	1	9	1	12.5	6	15	8/20	75	DFN1006-2
BV-FA05ZCK	5	1	5.5	1	7.5	1	11	35	75	8/20	385	DFN1006-2
BV-FA05U2A	5	1	6	1	12	1	/	/	0.7	8/20	20	DFN1006-3
BV-FA06ZD	6	1	7.2	1	10	1	15	21	180	8/20	315	DFN1006-2
BV-FA07ZCA	7	0.1	7.2	1	10	1	15	6	10	8/20	90	DFN1006-2
BV-FA12ZCB	12	0.1	13	1	16	1	20	6	5	8/20	120	DFN1006-2
BV-FA15ZCB	15	0.1	15.5	1	20	1	25	6	5	8/20	140	DFN1006-2
BV-FA18ZCB	18	1	19.5	1	27	1	47	4	22	8/20	180	DFN1006-2
BV-FA24ZCB	24	1	26.7	1	/	/	50	3	18	8/20	200	DFN1006-2
BV-D503ZA	3.3	1	4	1	/	/	14	7.5	105	8/20	105	SOD523
BV-D505ZA	5	1	5.6	1	/	/	15	7	80	8/20	105	SOD523
BV-D505ZCD	5	1	5.6	1	9.5	1	15	5	15	8/20	75	SOD523
BV-D505ZCG	5	1	5.3	1	10	5	12	20	38	8/20	200	SOD523
BV-D505UCA	5	2	5.6	1	12	1	15	2	3	8/20	30	SOD523
BV-D505UCB	5	0.5	6	1	/	/	20.5	6.5	0.7	8/20	130	SOD523
BV-D515ZA	15	0.5	16	1	/	/	30	4	28	8/20	120	SOD523
BV-D524ZA	24	1	26	1	/	/	50	3	80	8/20	150	SOD523
BV-FE03U2D	3.3	1	4.5	1	/	/	18	4	0.35	8/20	100	DFN1610-6L
BV-FK03U4CB	3.3	1	4	1	/	/	10	5	0.65	8/20	50	DFN-2510-10L
BV-FK05U4CB	5	1	6	1	/	/	10	5	0.65	8/20	50	DFN-2510-10L
BV-T603U4CA	3.3	1	4.5	1	8.5	1	15	4	0.8	8/20	60	SOT23-6
BV-T605U4CE	5	1	7	1	/	/	12	6	1.6	8/20	72	SOT23-6
BV-T605U4CF	5	1	6	1	/	/	15	4	0.7	8/20	60	SOT23-6
BV-FE12ZA	12	1	13	1	/	/	24	60	1500	8/20	1400	DFN1610-2L
BV-FE15ZA	15	1	15.5	1	/	/	35	50	450	8/20	1400	DFN1610-2L
BV03CWQ	3	0.5	3.5	1	5.8	1	15	10	1.5	8/20	150	SOD323
BV03CQ	3	20	4	1	5.15	1	13.9	8	1.5	8/20	150	SOD323
BV05CQ	5	5	6	1	9.8	1	18.3	8	1.5	8/20	150	SOD323
BV08CQ	8	2	8.5	1	13.4	1	18.5	8	1.5	8/20	150	SOD-323
BV12CQ	12	1	13.3	1	19	1	28.6	6	1.5	8/20	150	SOD323
BV15CQ	15	1	16.7	1	24	1	31.8	5	1.5	8/20	150	SOD323
BV24CQ	24	1	26.7	1	43	1	56	3	1.5	8/20	150	SOD323
BV-FK05U4CAQ	5	0.5	6	1	/	/	15	3	0.6	8/20	45	DFN2510-10L
BV-D505ZCQ	5	1	5.6	1	11.6	5	19	8	15	8/20	150	SOD523
BV-FA05ZCQ	5	1	6	1	11	1	15	4.5	15	8/20	75	DFN1006-2
BV-D303ZCBQ	3.3	40	4	1	9	1	15	20	450	8/20	300	SOD323
BV-D305ZCBQ	5	10	6	1	9.8	1	18	17	200	8/20	306	SOD323
BV-D312ZCBQ	12	1	13.3	1	20	1	32	11	75	8/20	352	SOD323
BV-D315ZCBQ	15	1	16.7	1	25	1	36	9	68	8/20	324	SOD323
BV-D324ZCBQ	24	1	26.7	1	45	1	50	5.5	50	8/20	275	SOD323
BV-D336ZCBQ	36	1	40	1	65	1	75	3	35	8/20	225	SOD323
BV-T305Z2CBQ	5	10	6	1	9.8	1	18	17	200	8/20	306	SOT23-3
BV-T312Z2CBQ	12	1	13.1	1	19	1	32	11	75	8/20	352	SOT23-3
BV-T315Z2CBQ	15	1	16.7	1	24	1	38	10	68	8/20	380	SOT23-3
BV-T324Z2CBQ	24	1	26.7	1	45	1	52	5.5	50	8/20	286	SOT23-3
BV-T336Z2CBQ	36	1	40	1	60	1	75	3	35	8/20	225	SOT23-3
BV-T303Z2CBQ	3.3	40	4	1	9	1	15	20	450	8/20	300	SOT23-3
BV-FA05ZCTQ	5	1	6	1	11	1	13	4.5	18	8/20	60	DFN1006-2
